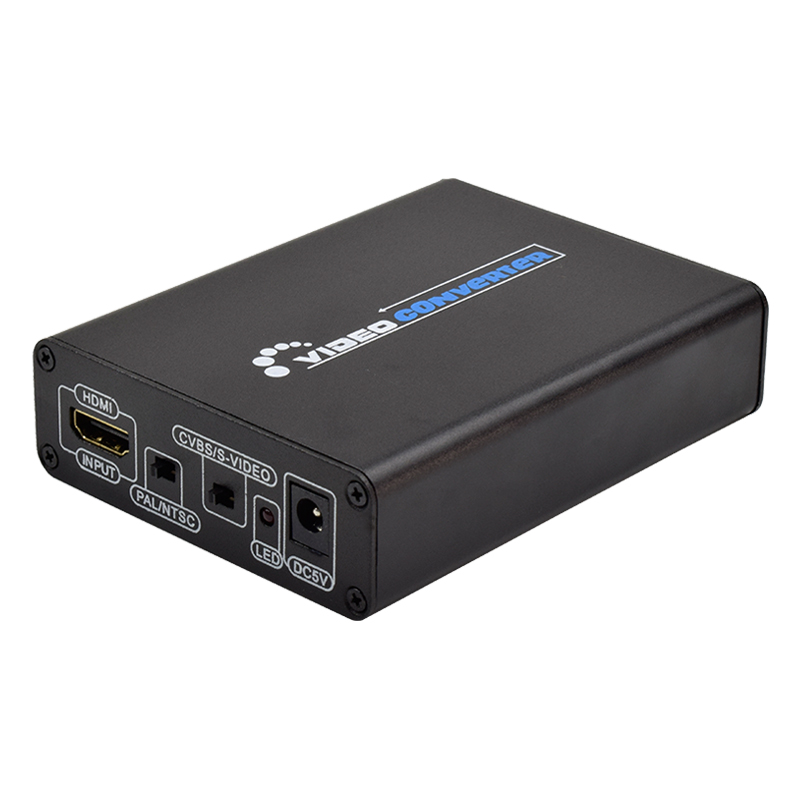

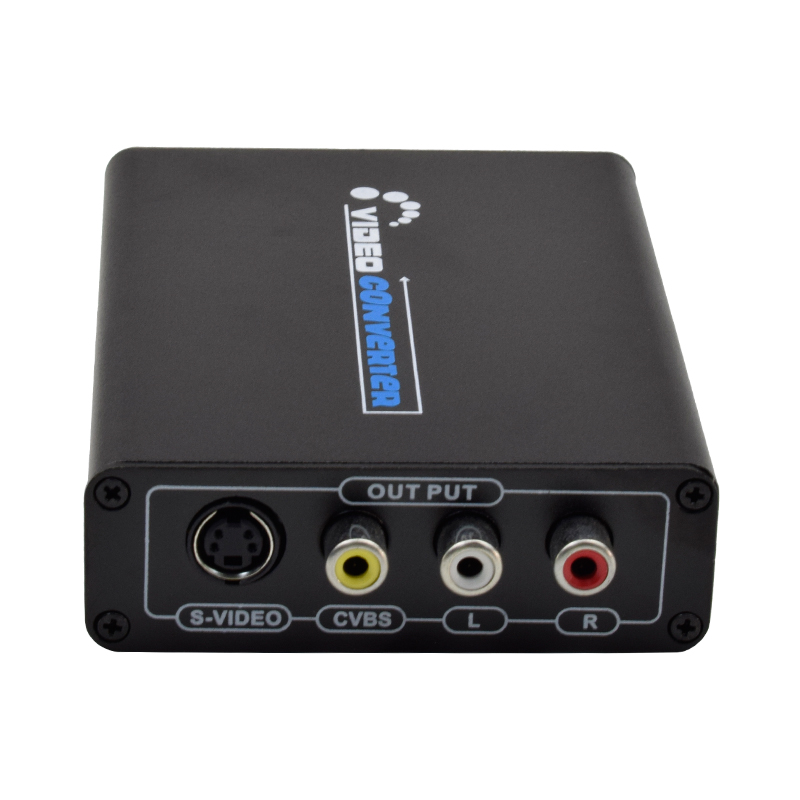

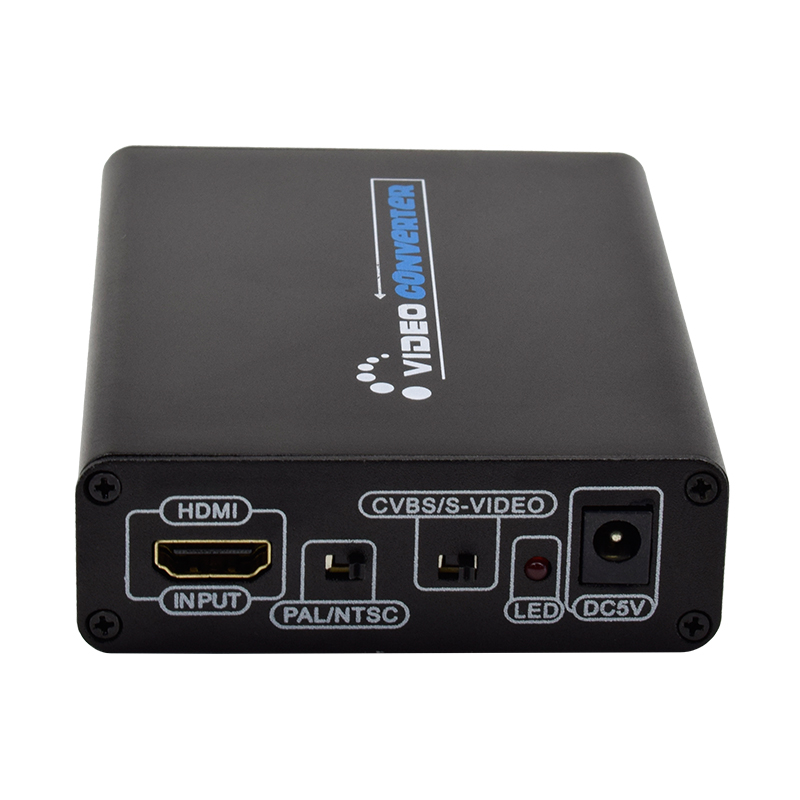

HDMI to 3RCA/AV/CVBS Composite & S-Video R/L Audio Converter
- Two mode outputs
- Metal case
- Product description：HDMI to RCA Comverter: Convert HDMI signal to RCA (AV) composite video and L / R stereo audio signals output. HDMI to S-video Converter: Convert HDMI signal to S-video analog video and L / R audio. H
Features
Metal casing material
HDMI Version: Compatible with HDMI 1.3
Convert HDMI to either Composite Video or S-Video

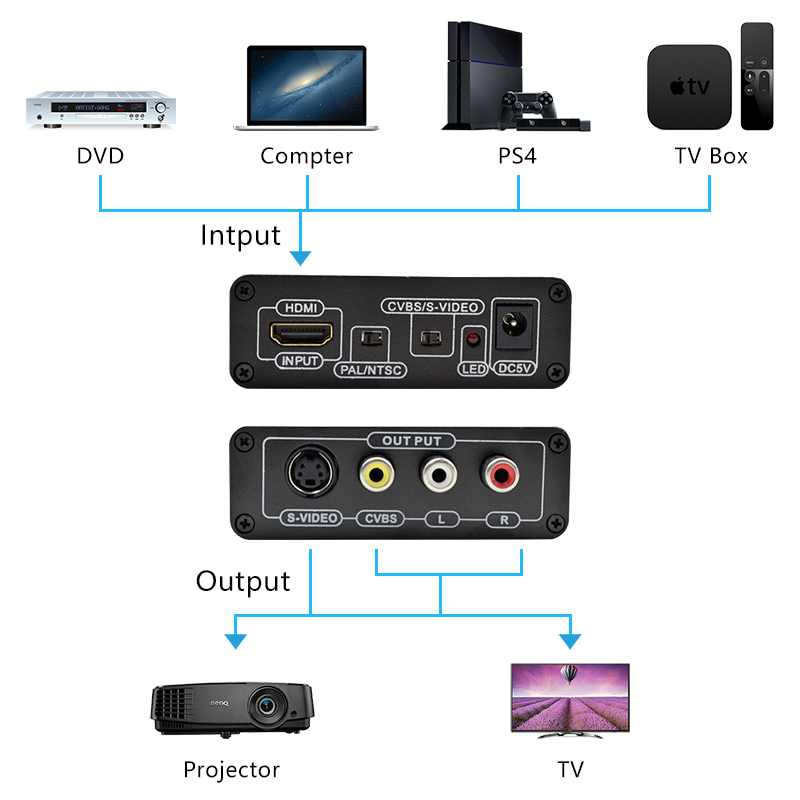

It allows the devices only equipped HDMI output to be connected to CRT TV
It is mostly applied in AV equipment testing
Input HDMI signal resolution: 480p(60Hz),
576p(50Hz),720p(50Hz/60Hz),1080i(50Hz/60Hz),1080p(50Hz/60Hz)
Output signal: CVBS (1.0Vpp), S-Video (Y:1.0Vpp,C:0.3Vpp)
Output video systems: PAL/NTSC
Output video impedance: 75 ohm
Length of the s-video cable: 1.5m/5ft
Length of the RCA cable: 1.5m/5ft
Package include
1 x HDMI to RCA/S-Video Converter
1 x AC adapter
1 x RCA cable
1 x S-Video Cable
1 x User Manual
Metal casing material
HDMI Version: Compatible with HDMI 1.3
Convert HDMI to either Composite Video or S-Video
It allows the devices only equipped HDMI output to be connected to CRT TV
It is mostly applied in AV equipment testing
Input HDMI signal resolution: 480p(60Hz),
576p(50Hz),720p(50Hz/60Hz),1080i(50Hz/60Hz),1080p(50Hz/60Hz)
Output signal: CVBS (1.0Vpp), S-Video (Y:1.0Vpp,C:0.3Vpp)
Output video systems: PAL/NTSC
Output video impedance: 75 ohm
Length of the s-video cable: 1.5m/5ft
Length of the RCA cable: 1.5m/5ft
Package include
1 x HDMI to RCA/S-Video Converter
1 x AC adapter
1 x RCA cable
1 x S-Video Cable
1 x User Manual
