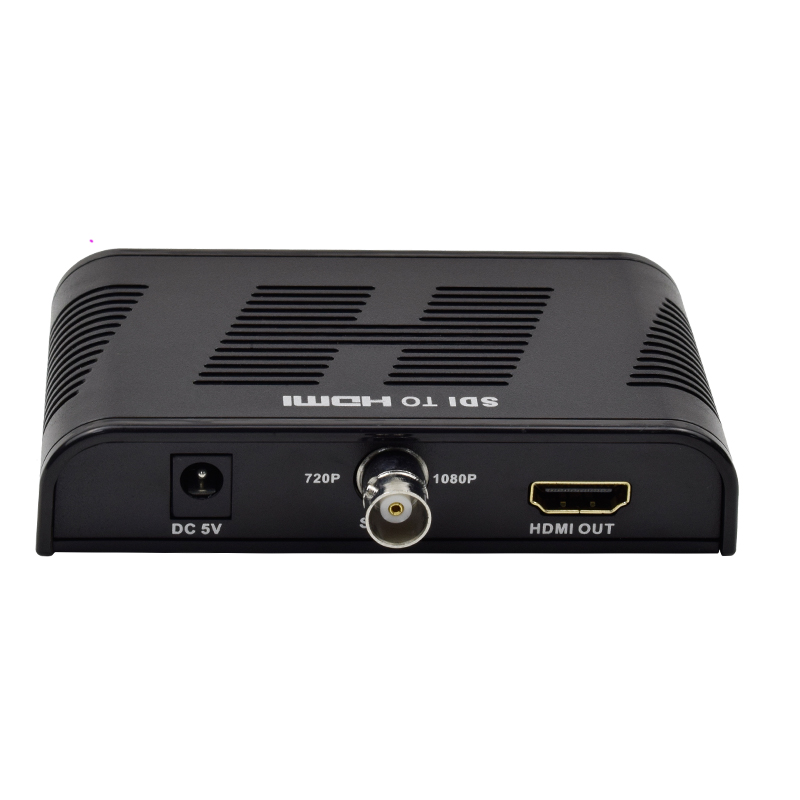

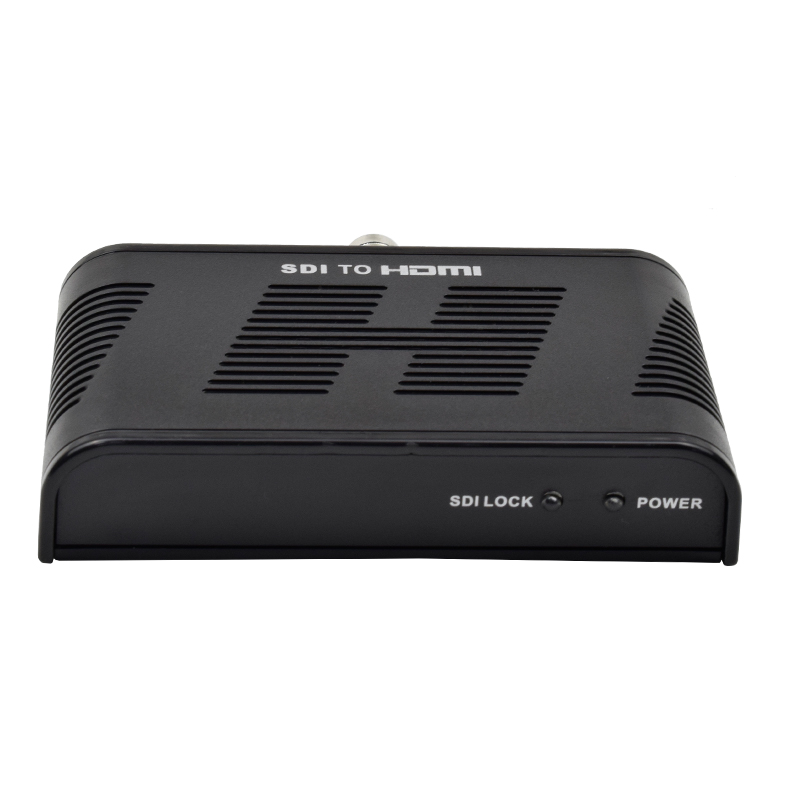

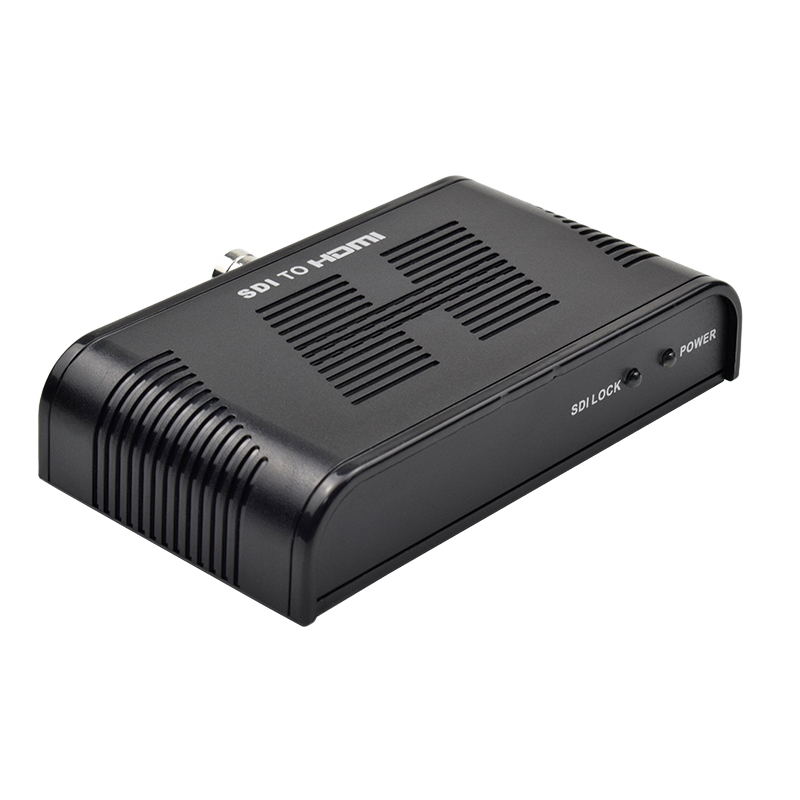

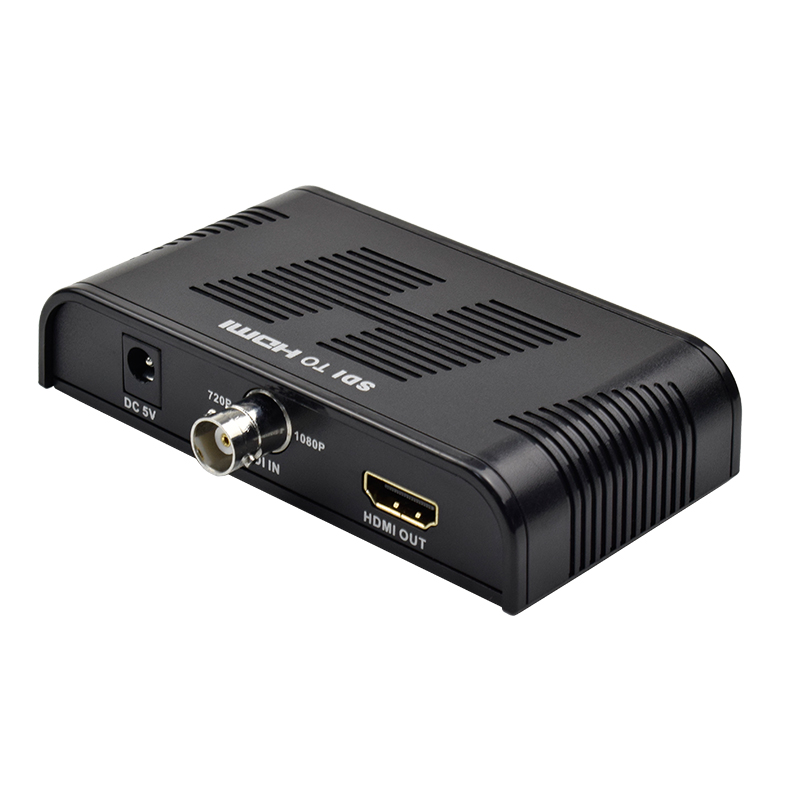

SDI HD-SDI 3G-SDI to HDMI

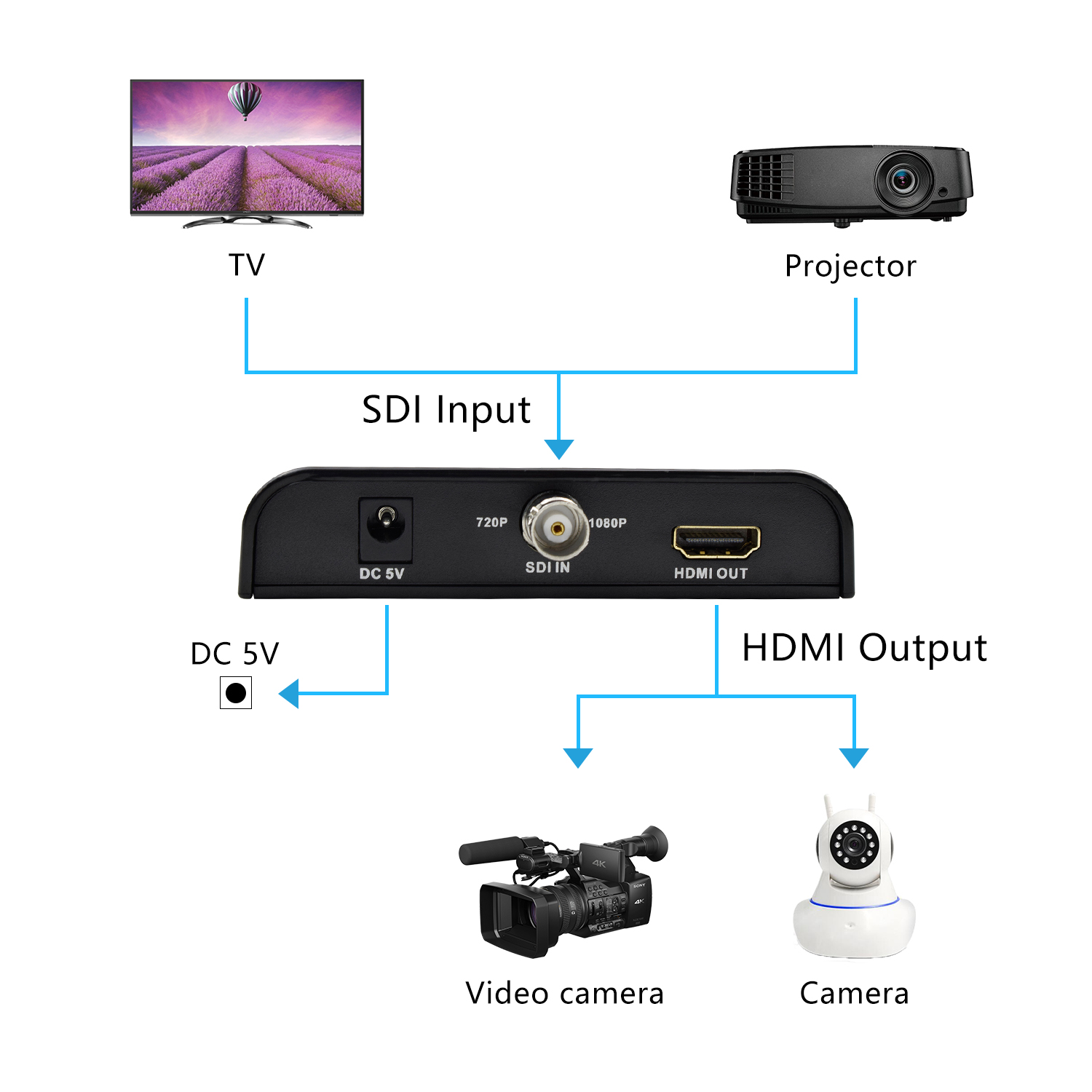

 SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

Specification:
Input Interface: 1 x BNC (SDI/HD-SDI/3G-SDI),1 x DC 5V-12V
Output Interface: 1 x HDMI
Mini size design easy to carry for engineering
Supports wide range input voltage from 5V to 12V
Industry standard design, 365 x 24 hours uninterruptible working
Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances
Input/Output Resolution: 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60
Power: DC 5V /1A (Support 5V-12V wide voltage input)
Unit Dimension: 80mm x 41mm x 25 mm
Unit Weight: 108g

Package Contents:
1 X 3G SDI to HDMI Converter
1 X DC Power Adapter
1 X User Manual

Warranty:
1 Year Limited Warranty
