Digital optical audio switcher 4 in 1 out
- Digital optical audio
- 4 in 1 out
- Support PCM Stereo 32kHz, 44.1kHz, 48kHz and 96kHz.
- Supports Dolby Digital & DTS 5.1,
- Product description：4 toslink optical audio input signals switch to 1 toslink optical output. Supports Dolby Digital & DTS 5.1, Dolby Digital Plus; Support PCM Stereo 32kHz, 44.1kHz, 48kHz and 96kHz. Output distance is

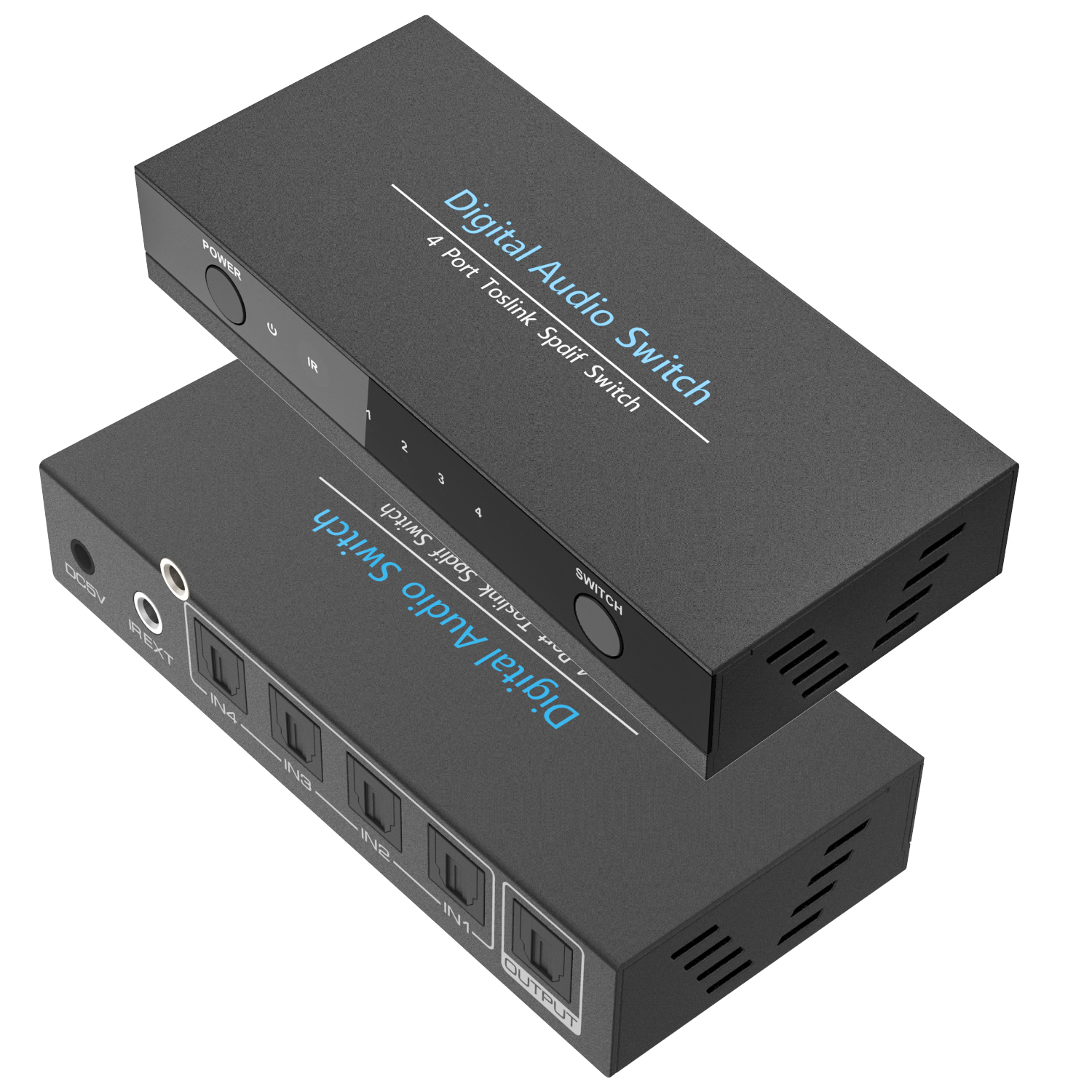

This 4 Port Fiber SPDIF TOSLINK Digital Audio Switcher wih Remote Control Digital Optical 4x1 Audio Switch Box allows user to conveniently select any one of the Four digital optical TOSLINK sources.
It utilizes integrated circuits to perform seamless and reliable switching flawlessly without degradation.
Specifications:
1. Support audio format: LPCM2.0/DTS/Dolby-AC3
2. Peak wavelength: 650nm
3. Max baud rate: 16Mbps
4. Output cable distance: <40m(Use the optical fiber cable loss less the 0.2Db/m )
5. Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
6. Operating Temperature range: 0 to +40℃
7. Operating Humidity range: 5 to 90%RH (No Condensation)

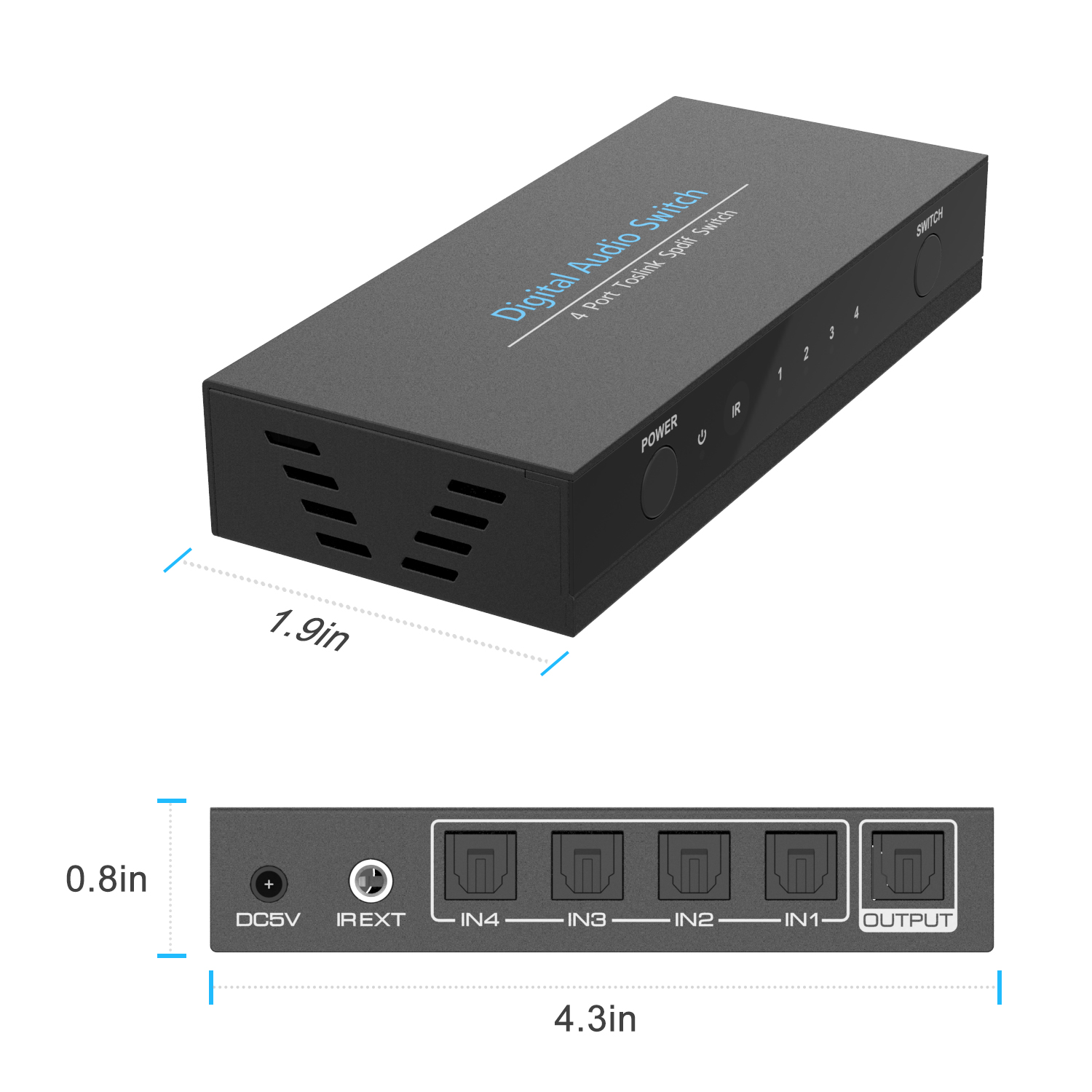

8. Dimension (L x W x H): 4.33x1.88x0.78 (in)
Satisfactory Guarantee
It utilizes integrated circuits to perform seamless and reliable switching flawlessly without degradation.
Specifications:
1. Support audio format: LPCM2.0/DTS/Dolby-AC3
2. Peak wavelength: 650nm
3. Max baud rate: 16Mbps
4. Output cable distance: <40m(Use the optical fiber cable loss less the 0.2Db/m )
5. Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/500mA
6. Operating Temperature range: 0 to +40℃
7. Operating Humidity range: 5 to 90%RH (No Condensation)
8. Dimension (L x W x H): 4.33x1.88x0.78 (in)
Satisfactory Guarantee
