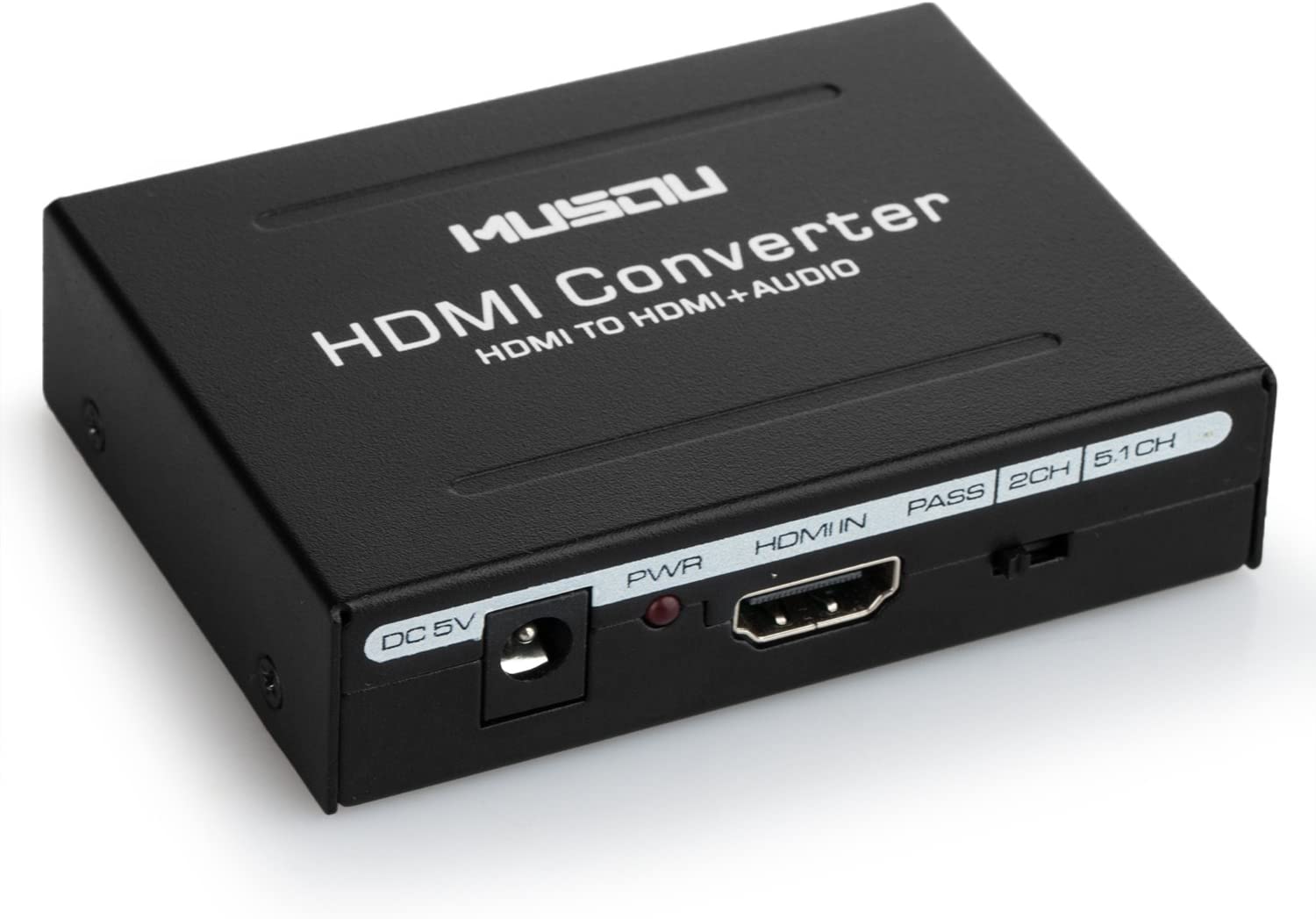

Musou 1080P HDMI Audio Extractor HDMI to HDMI + Optical Toslink(SPDIF) + RCA(L/R) Stereo Analog Outputs Video Audio Splitter Converter

UPC：614134536191

SPDIF Output Supports Upto DD & DTS 5.1CH Audio; RCA Analog L/R Output Supports 2CH PCM Stereo Audio;

Supports 24 bit /deep color 30bit, 36bit per channel (36bit all channel) deep color. Supports HDCP, Video EDID Pass Through; Plug & Play supports AppleTV and various Blu-ray player;

Audio Settings: 2CH for L/R or SPDIF stereo output; 5.1CH for SPDIF Output, Supports uncompressed audio such as LPCM. Supports compressed audio such as DTS Digital, Dolby Digital(Dolby Digital Plus not supported) ;

Provides the Best Flexibility through Three NEW Audio EDID Settings: Pass, 2CH and 5.1CH, Support 3D video (To get 3D, all units connected to the splitter outputs must support 3D). This item supports Apple TV and various Blu-ray player and satellite receivers,Xbox one,Wii U/ PS3 PS4/raspberry.

Product description

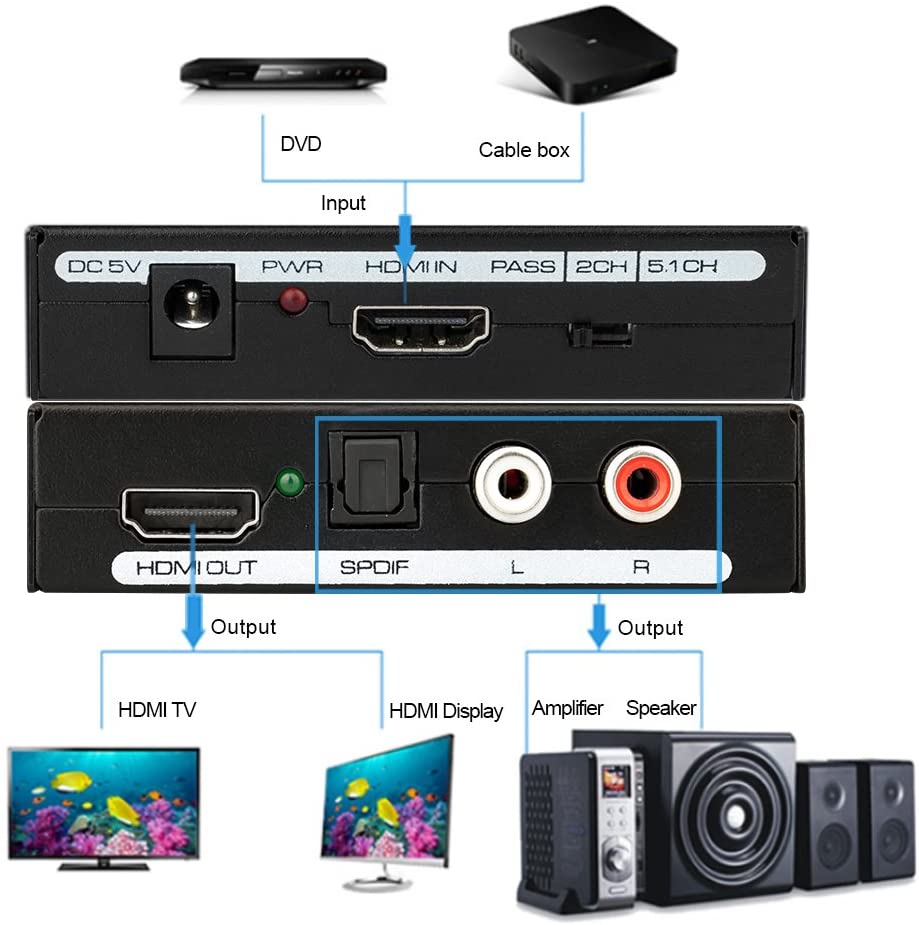

This Musou HDMI Audio Exractor can be used for those receivers or amplifiers that does not have HDMI inputs. Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray DVD player, cable/satellite receiver, Amazon Fire TV,Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc.

Specifications

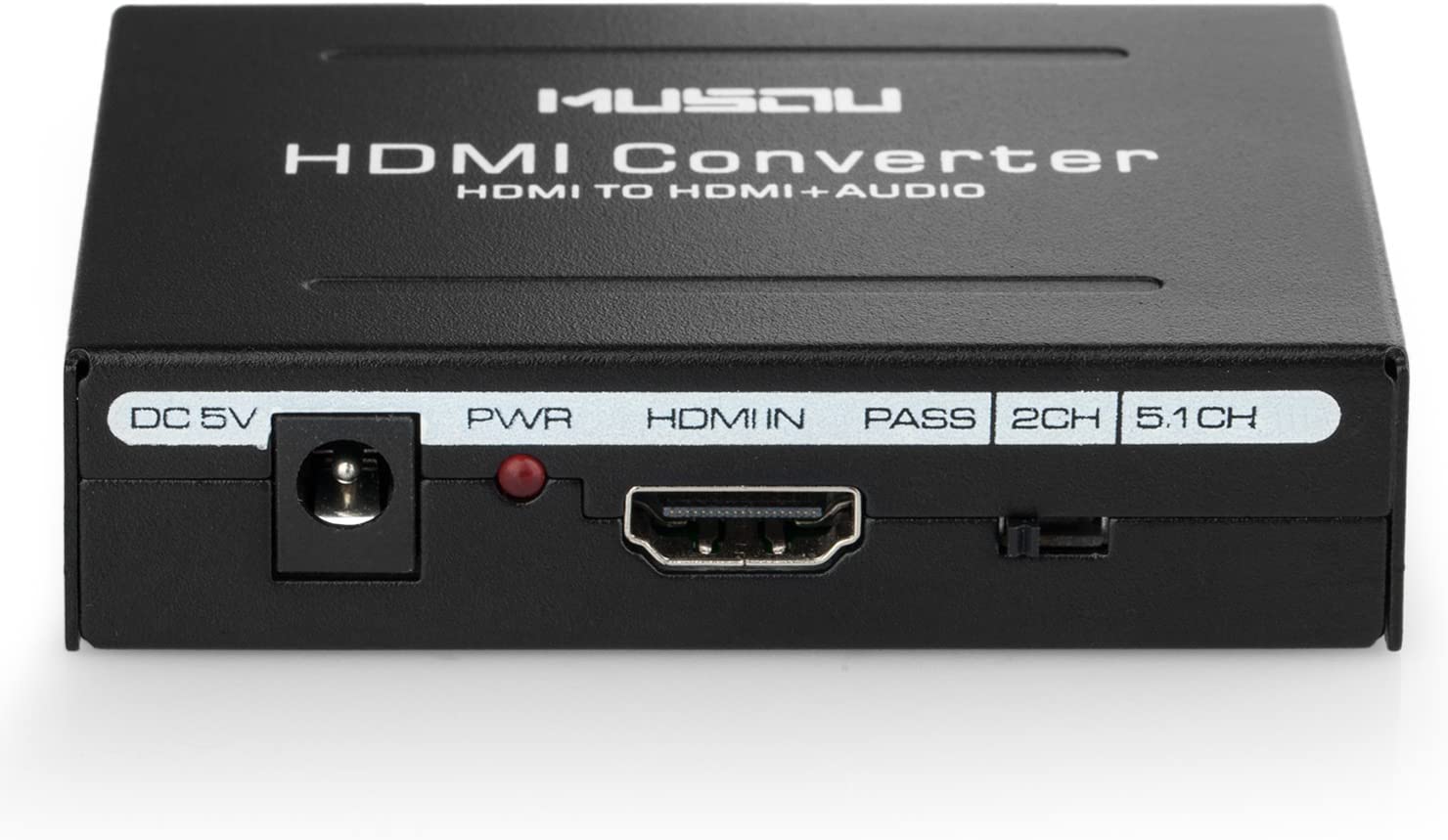

- Iuput Port: 1xHDMI IN,1xDC 5V Port,3xEDID Audio(Pass/2CH/5.1CH)

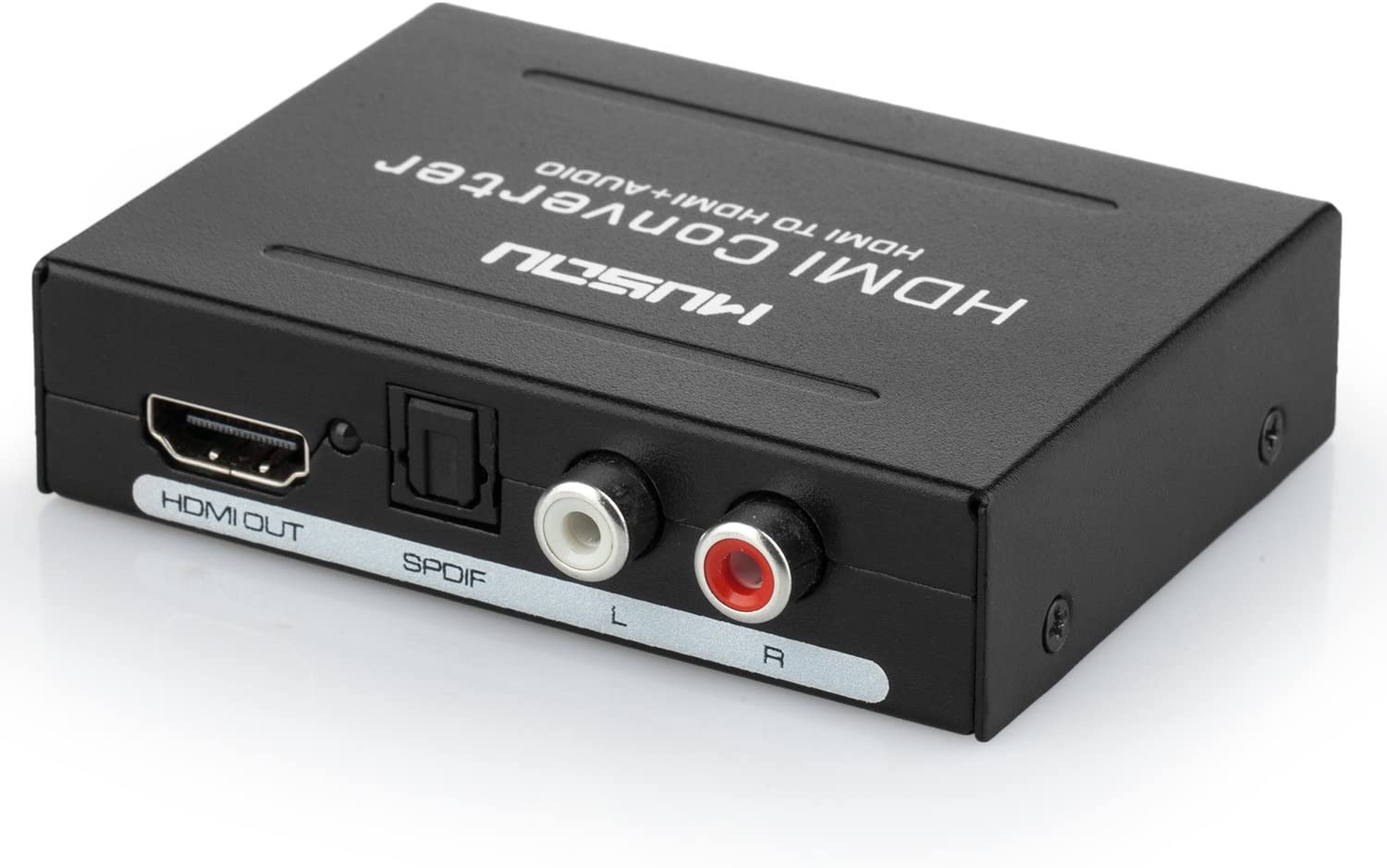

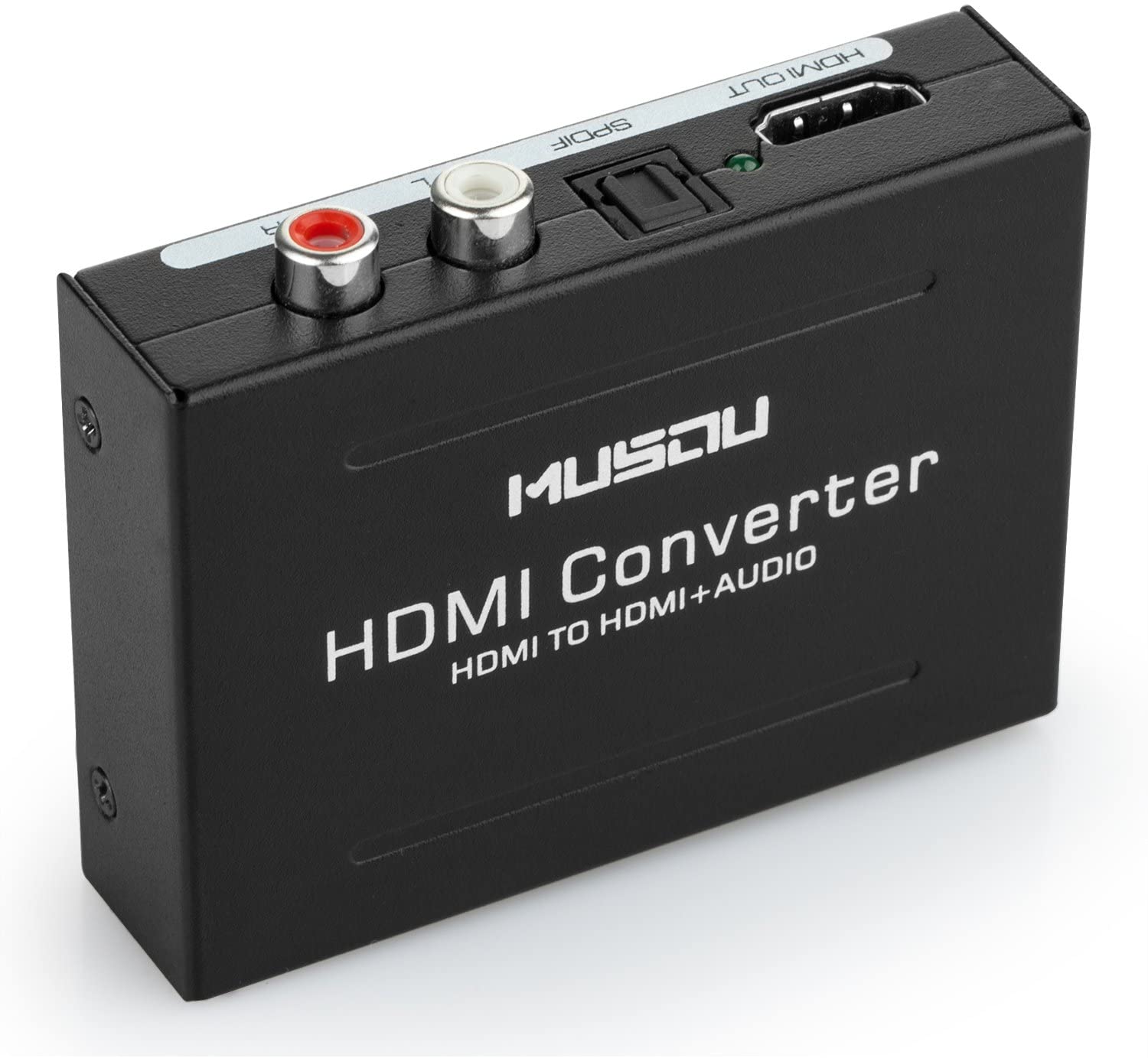

- Output Port:1xHDMI OUT,1xSPDIF(Optical),2xRCA L/R Audio
- Dimensions(mm):84(D)x62(W)x20(H)
- Wight (g):230
- Support video color format: 24bit/deep color 30bit,36bit
- HDMI resolution:24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
- Max bandwidth:225MHz;Max baud rate:6.75Gbps

About the Audio switch
PASS:It means HDMI in and HDMI out,no audio extactor.Supports all formats including more advanced Dolby Digital Plus, PCM5.1CH and beyond.)
2CH Mode: It means HDMI in to HDMI out and 2RCA out.It can extract digital 2CH PCM stereo audio signal from the HDMI input and convert it to 2CH analog stereo output through its RCA style L/R analog output. The RCA L/R output will not have sound if the incoming audio is multi-channel audio (>2CH). Set EDID switch to 2CH for RCA L/T stereo application.
5.1CH:It means HDMI in to HDMI out and SPDIF out.The SPDIF optical audio output supports all audio formats upto 5.1CH Dolby Digital 5.1CH / AC3 & DTS 5.1CH audio. But not support Dolby Digital Plus and higher formats,such as HD audio (Dolby TrueHD, DTS-HD Master Audio, PCM5.1 and beyond).

Note:

For 5.1CH PCM or above, set audio EDID to pass, connect HDMI output to receiver directly.
If no video, do: 1) power up the TV, 2) power up this extractor, 3) Power reset the HDMI source unit.

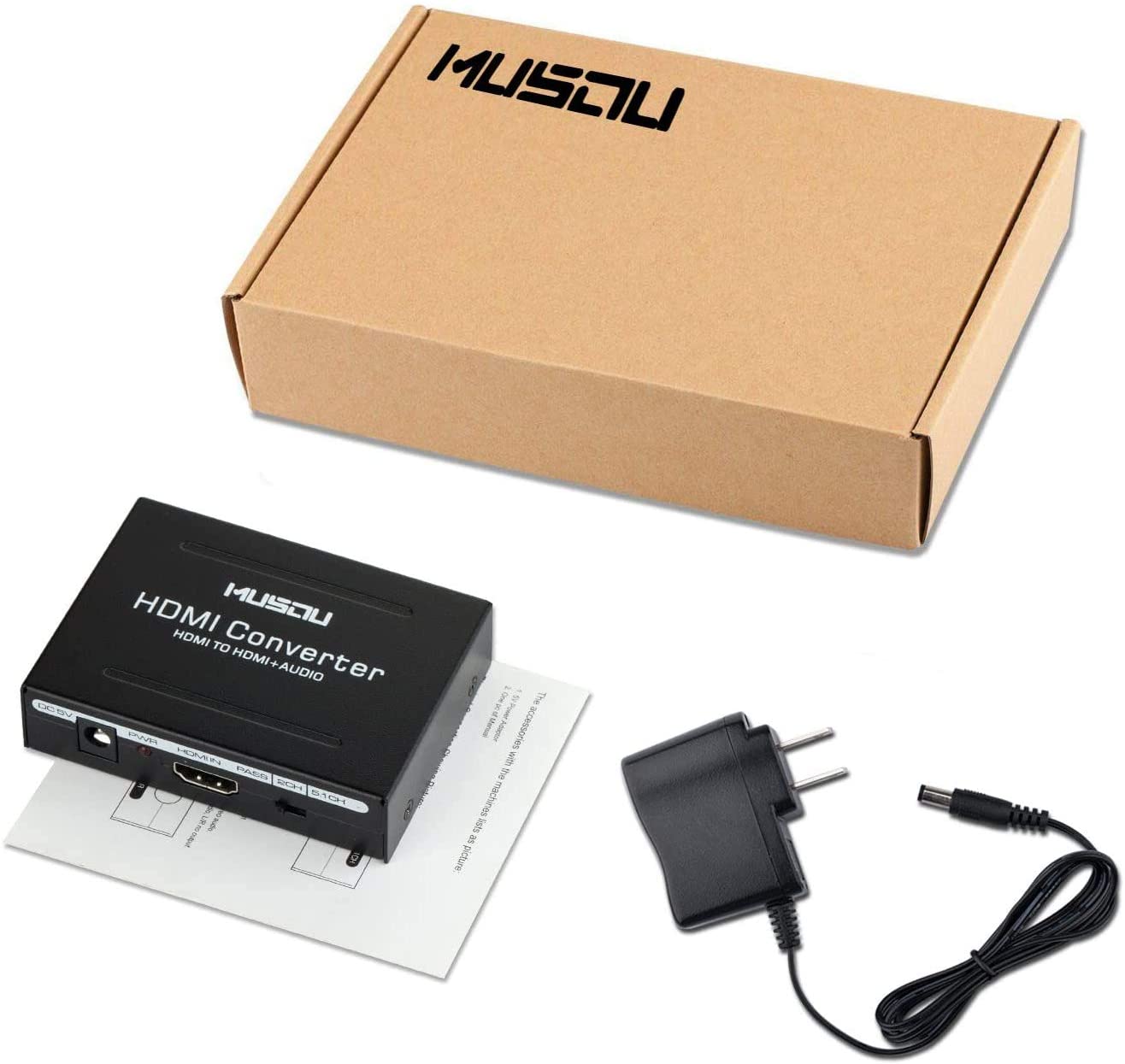

Package Includes
- Main unit (HDMI Audio Extractor)
- 5V/1A DC POWER SUPPLY
- USER'S Manual
